A.[Features of Oval Gear Flow Meter]
1-Widely range of liquid viscosity
the viscosity of medium is 0.6Mpa.s~250Mpa.s
2-Various of Display and Output
The Cast iron material PD Mechanical Oval Gear Flow Meter with digital display and mechanical display ;pulse or 4~20mA Output;
the Cast iron material PD Mechanical Oval Gear Flow Meter suitabke for various applications such as chemical industry ,oil,medicine and electricity,etc.
Beacuse of the principle of Cast iron material PD Mechanical Oval Gear Flow Meter,the accuracy is 0.5% or 0.2%.
|Production Name||Cast iron material PD Mechanical Oval Gear Flow Meter|
|Medium||Main Medium is Oil|
|Accuracy||0.5% or 0.2%|
|Output||Pulse output ,4~20mA Output and without output|
|Material||Cast iron,cast steel or stainless steel material|
|Display||LCD Display or Local Mechanical display|
|Function||Return to zero function|
|Accessories||''Y''Filter or square filter|

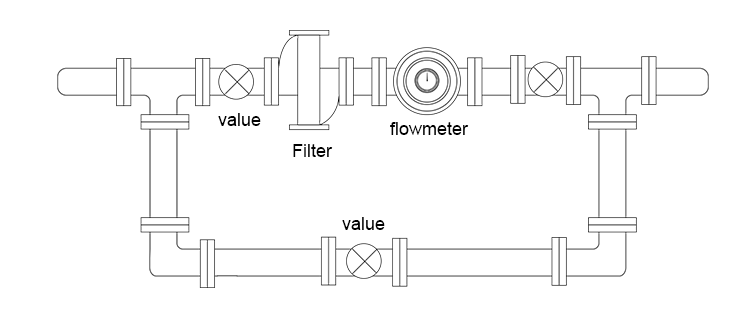

- The flow direction should be same as the sign on the body,the location must be convenient for you reading.
- The Cast iron material PD Mechanical Oval Gear Flow Meter should be installed at normal temperature location where without harmful gas to avoid damaging the flow meter;
- Pls installa the bear horizontal state
- Pls keep the pipeline is clear before installa the flow meter and installa the filter to avoid the Impurities got into pipe.
- The flow adjusted value should be installed at downsteam,First,you should open the adjusted value and second to open the shut-off value.
- Pls ensure the liquid without any gas;
- If the mediun's viscosity is high,sometime ,you should heating to reduce the viscosity;
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life
